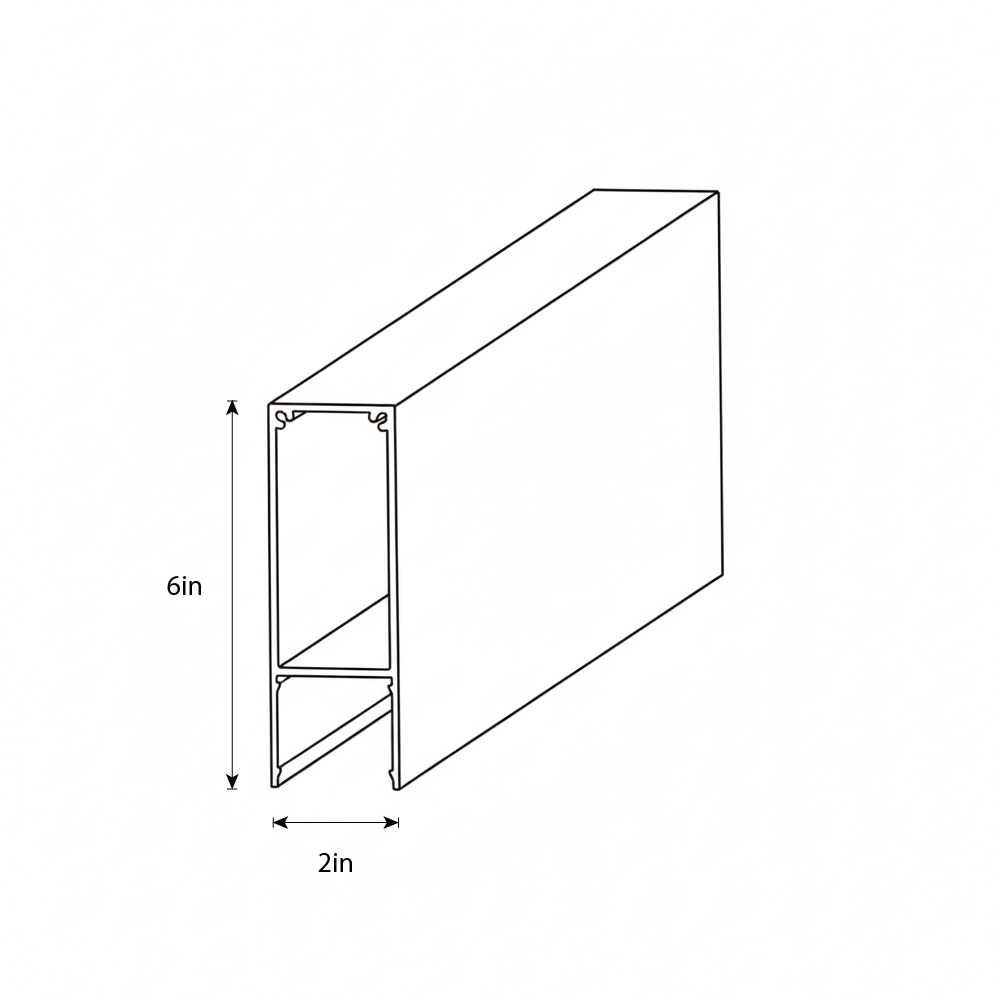

2x6 Batten

Battens

Quick Edge Aluminum Cladding is designed for both commercial and residential projects. Its secure interlocking profile delivers a seamless finish in any orientation, while offering superior performance in wet, frost, and fire-prone areas. Install with or without a reveal for a modern, versatile look that lasts:

  • Designed for Indoor/Outdoor uses
  • Durable Aluminum Woodgrain Cladding
  • Class A Fire Rated and Weatherproof
  • All Trims & Channels Available
  • Exceeds Miami Dade Wind Tests
  • Florida Building Code Compliant
  • Horizontal, Vertical or Diagonal Install
  • Made of Recycled Aluminum
Item added to cart View Cart Checkout

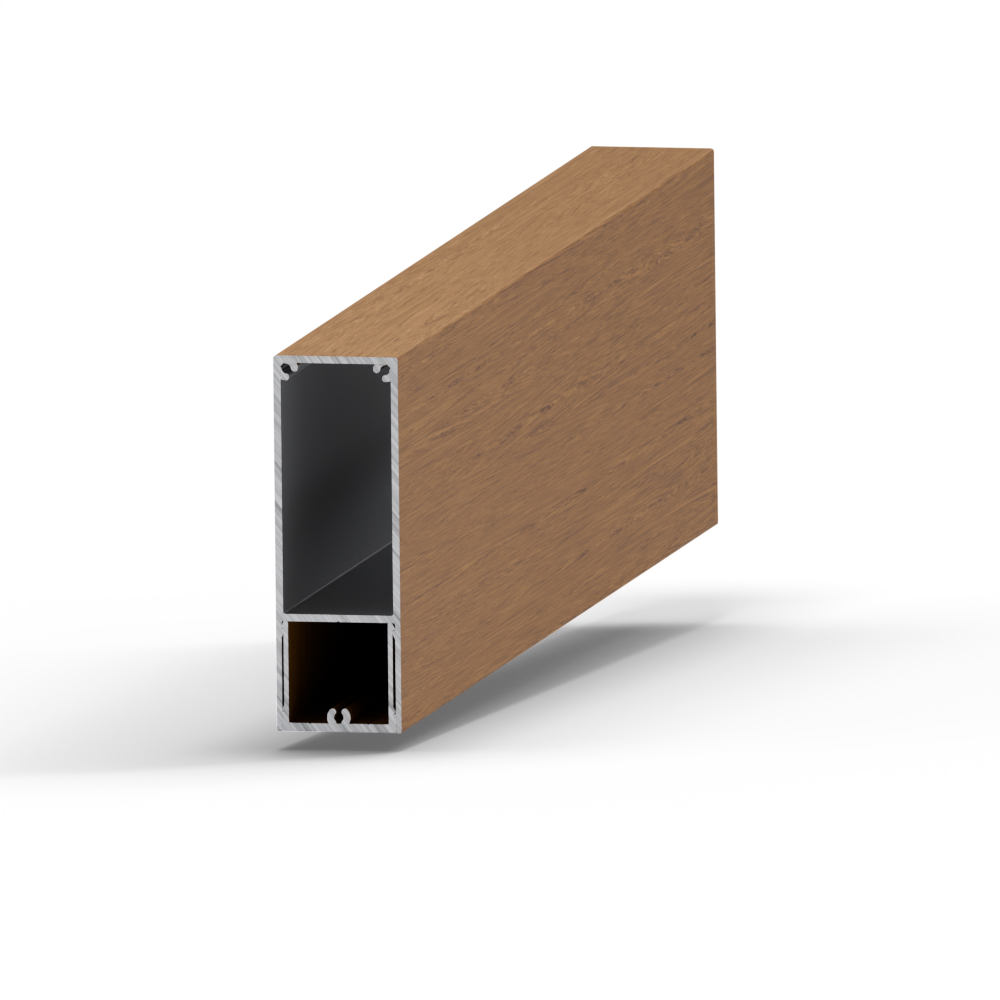

Color: Kentucky Oak

Categories:
Description
Specifications
FAQs
Downloads
Description
ARCHITECTURAL BATTEN SYSTEMS
Architectural Depth & Dimension

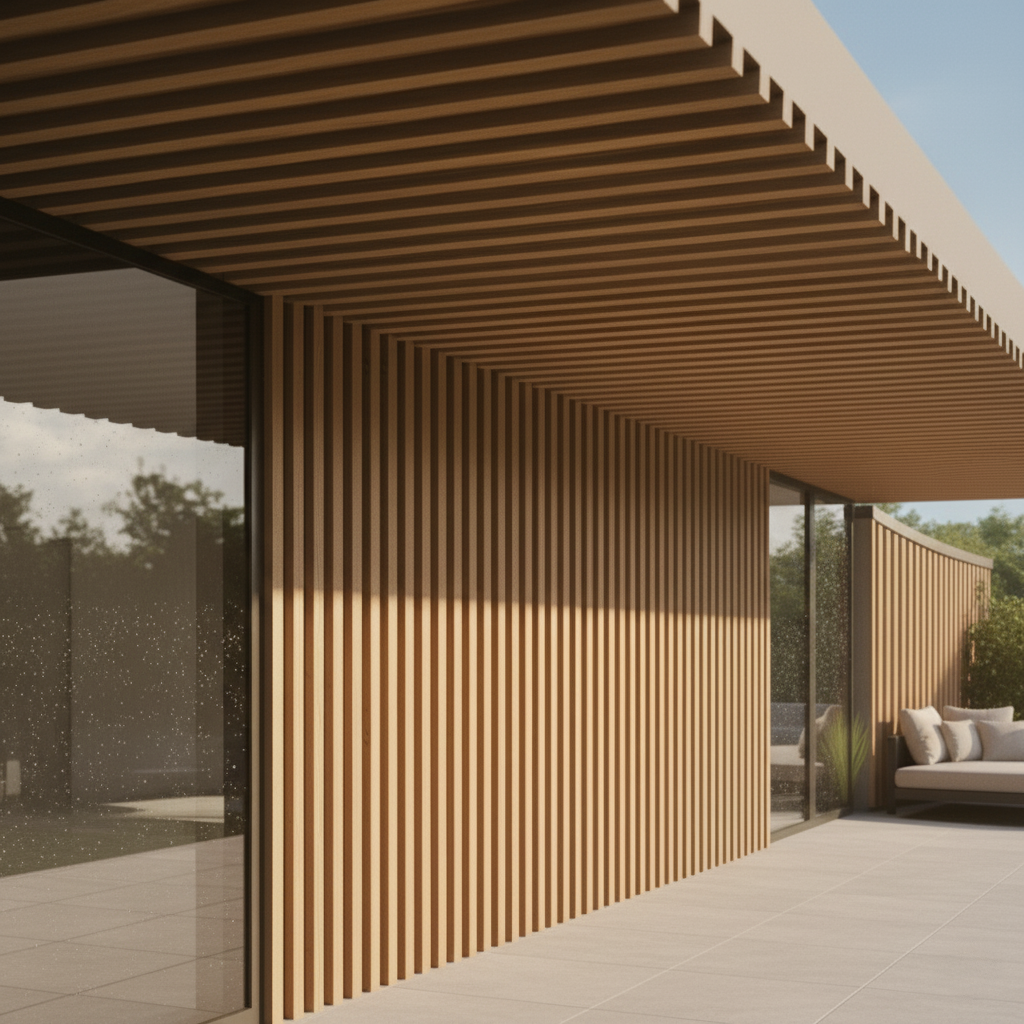

Create defining architectural features with our versatile aluminum batten system. Whether used for privacy screening, facade articulation, or decorative accents, these profiles deliver clean, rhythmic lines that instantly modernize any structure.

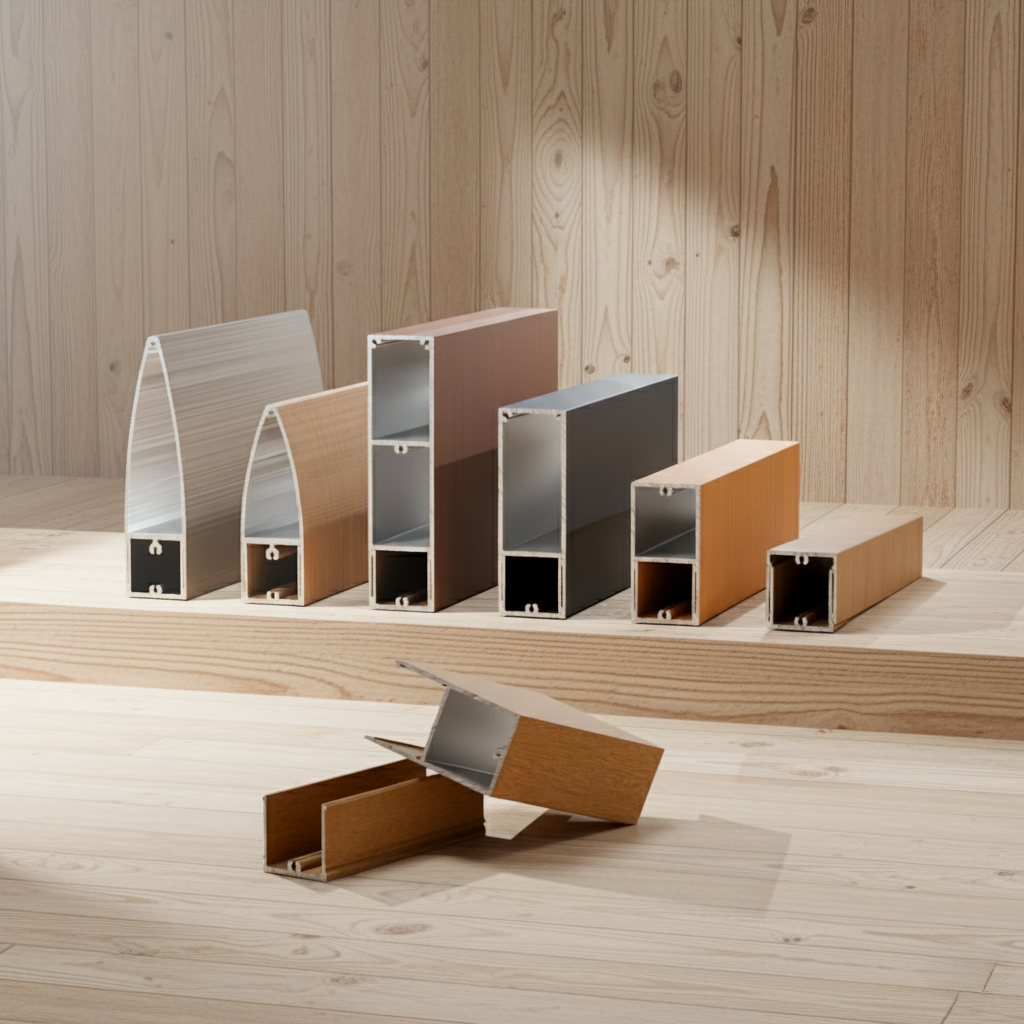

Available in a variety of depths and widths, our battens allow architects and designers to play with light, shadow, and spacing. The sublimated wood grain finish provides the warmth and texture of heavy timber beams without the weight or structural strain.

Unlike natural wood, which creates maintenance headaches, our marine-grade aluminum profiles will never warp, twist, or crack, ensuring your design lines remain perfectly straight for the life of the building.

ENGINEERED VERSATILITY
Seamless Structural Integration

Designed for limitless application, our batten systems function beautifully as suspended ceilings, garage doors, shading structures, or fencing. The lightweight hollow-core design reduces the load on your underlying structure, making installation faster and safer.

The system utilizes a concealed fixing mechanism, meaning you achieve a flawless, floating appearance with no visible screws or brackets to disrupt the aesthetic flow.

Engineered for stability, these battens are unaffected by humidity or temperature fluctuations. This makes them the ideal solution for spanning long distances in soffits or pergolas where traditional timber would inevitably sag or bow over time.

Redefining the boundaries of architectural design, we specialize in high-performance aluminum solutions that bridge the gap between natural aesthetics and modern engineering.

From heat-dissipating decking and durable fencing to seamless soffits and striking cladding profiles, our products offer the timeless warmth of wood without the maintenance. Crafted from marine-grade aluminum and finished with hyper-realistic textures, our systems are designed to withstand the elements while delivering a flawless finish for both residential and commercial masterpieces.

Specifications
Thickness 15 Gauge T5 Aluminum Alloy
Length 12'
Width 6" Net Face
Weight 11.25 lbs per 12' piece
1.9 lbs/SF
Coverage 12 Sq Ft Per Bundle
Profile V-Groove Siding and Soffit
Trim Requirements Shop Our Compatible Trim & Channels Here
Each bundle contains 2 aluminum panels.
Please note: This high-quality aluminum product mimics the appearance of authentic wood, but without the maintenance or fading over time.
FAQs

Frequently Asked Questions
Quick answers to common questions.
What is the product made of?

Our profiles are crafted from high-strength 6063 T5 marine-grade aluminum. The wooden aesthetic is achieved through an advanced sublimation process or durable powder coating, which fuses the texture to the metal. This ensures you get the structural benefits of metal with the authentic look of timber—without any PVC or composite fillers.

Does the aluminum rust or corrode?

No. Unlike steel, aluminum is naturally resistant to rust. Our marine-grade alloy creates a protective oxide layer that prevents corrosion, making our cladding and decking systems ideal for all environments, including coastal areas with high salt exposure and regions with heavy rainfall.

What kind of maintenance is required?

Virtually none. Unlike real wood, our aluminum systems require no sanding, staining, oiling, or sealing—ever. To keep them looking pristine, simply wash them down occasionally with mild soap and water to remove surface dust or dirt.

Is this product fire-rated?

Yes. Aluminum is a non-combustible material, making it one of the safest choices for architectural cladding and decking. Our systems meet strict fire codes and are suitable for use in wildfire-prone areas and high-rise commercial buildings where combustible materials (like traditional wood or vinyl) are restricted.

Can I install this myself?

Our systems are designed with a user-friendly interlocking tongue-and-groove design (or hidden fastener system) that simplifies the process significantly compared to traditional masonry or timber. While many skilled DIYers can handle the installation, we recommend a professional contractor for large-scale cladding projects to ensure proper alignment and substrate waterproofing.

What is the warranty coverage?

We stand behind the durability of our products. All our aluminum systems come with a 2 year limited warranty that covers manufacturing defects, as well as resistance against cracking, peeling, blistering, and significant fading, giving you peace of mind for decades.

Downloads

Additional Spec Sheets
Request the PDF specs for this product.
Cladding Board Spec Sheet
Detailed dimensions, materials, and mounting instructions.
PDF • 1.2 MB
Colors Sheet
Color swatches, finishes, and paint codes for cladding options.
PDF • 0.8 MB
Cladding Assembly Sheet
Exploded views and assembly steps for cladding installation.
PDF • 2.4 MB
